PT10CR-2130 Pressure Transmitter

time：2021-01-26 browse：second

< >

Model：

overview：

PT10CR-2130 pressure transmitter is an economical pressure transmitter developed by our company for OEM customers and equipment. This product has the characteristics of small size, light weight, high stability, corrosion resistance, impact resistance, vibration resistance, etc. It is especially suitable for applications in air compressors, commercial air conditioners and general industrial pressure measurement and control.

main features
parameter
structure
selection
application

download

main features

• Compact size, light weight

• Strong corrosion resistance and wear resistance

• Shock and vibration resistance

• Short circuit protection and reverse polarity protection

• High stability and reliability, cost-effective

parameter

Range	250kPa、400kPa、600kPa、1MPa、1.6MPa、2.5MPa、4MPa
Overpressure	1.5 times FS
Pressure type	Gauge
Pressure connection	R1/4 male and G1/4 male
Accuracy	1％FS
Operation Temp.	-20℃~80℃
Storage Temp.	-40℃~125℃
Power Supply	8V~28V DC
Output Signal	4mA~20mA DC(2-wire)
Load	≤（U-8）/0.02Ω
Protection	IP65
Electrical connection	3 pin Packard Plug
Long-term Stability	＜±0.5%FS/year
Housing	Stainless Steel
Sensor	Ceramics
Connector shell	Plastic

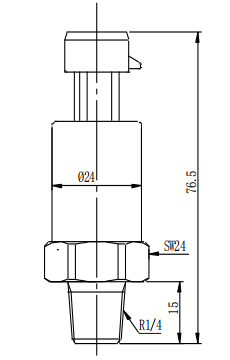

structure

Unit: mm

selection

Order Guide
PT10CR-2130	Pressure Transmitter
	Range	250kPa、400kPa、600kPa、1MPa、1.6MPa、2.5MPa、4MPa
	[0~X]kPa or MPa	X: Actual measurement range
		Code	Output Signal
		E	4mA~20mA DC
			Code	Pressure Port
			C15	R1/4 male
			C2	G1/4 male
				Code	Pressure Type
				G	Gauge

PT10CR-2130	[0~1.6]MPa	E	C2	G	the whole spec.

application

PT10CR-2130 pressure transmitter is especially suitable for applications in air compressors, commercial air conditioners and general industrial pressure measurement and control.
