PSWI5581 Intelligent Pressure Switch

time：2021-01-22 browse：second

< >

Model：

overview：

PSWI5581 is an intelligent pressure switch integrating pressure measurement, display and control. This product uses advanced industrial-grade MCU as the core and high-quality sensor, under the premise of ensuring accuracy, rapid response and good electromagnetic compatibility of the pressure switch are achieved through careful design and adjustment. Because of its good media compatibility, the pressure switch can be widely used in various industrial control sites such as pumps, hydraulic and pneumatic equipment, etc.

PSWI5581 intelligent pressure switch visualizes the process pressure and switch contact status through switch output, analog output and a display screen, it can provide multiple output configurations according to different applications. The switch has functions such as delay setting, range zoom, manual reset and peak value display,etc. With special design and structure, it can be installed vertically, horizontally or rack mounting. 180°rotation of display information and 330°rotation of instrument body can ensure that display screen faces the operator, self-luminous OLED display is clear and easy to read, it can also support Modbus communication function.

main features
parameter
structure
selection
application

download

main features

• Pressure measurement for gas and liquid

• PNP switch , voltage and current output optional

• Peak value display

• Range zoom function

• PNP switch point setting, support switch action delay

• Modbus communication

• OLED display

• 180°rotation of display information

• 330°rotation of instrument body

• Support multi-unit switching display

parameter

Range（MPa）	0.1，0.35，0.7，1.6，3.5，7，10，25，40，60
Range Zoom	25%FS~100%FS
Pressure Type	Gauge, Absolute
Overpressure	2×FS or 100MPa(min. value is valid)
Accuracy	±0.5%FS
Hysteresis	±0.2%FS
Temperature error	±0.02%FS/℃(Zero/FS)
Power supply	12V~30V DC
Long-term Stability	±0.3%FS/year
Output	Switch+Voltage: 2×PNP+0V~5V DC/10V DC
Output	Switch+Current: 2×PNP+0mA/4mA DC~20mA DC
Switching current	1.0A(max.)
Switch reaction	<10ms
Switch delay	0.0s~99.9s
Switch action pattern	Hysteresis Mode/Window Mode
Screen display	Blue 128×64 OLED
Switch display	2 red LED
Display units	MPa￤kPa￤bar￤psi￤kgf/cm²
Key	3 silicone rubber keys, pleas operate according to instructions on the screen.
Temperature display	Environment temperature
Peak display	Pressure peak in process
Operation Temp.	-20℃~80℃
Storage Temp.	-40℃~80℃
Relative Humidity	0%RH~85%RH
EMC	GB/T 17626.2/3/4-2006
Shock	≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
Impact	≤50g/11ms(IEC 60068-2-27-2008)
Protection	IP65
Housing	SS
Display board	PMMA
Diaphragm	SS 17-4/316L
Electric connection	M12×1 round plug
Weight	~300g

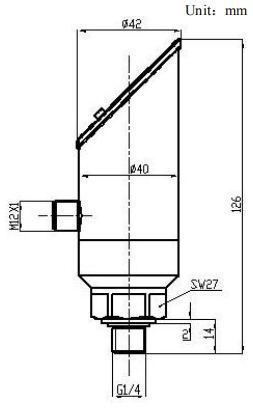

structure

selection

Order Guide
PSWI5581	Intelligent Pressure Switch
	Code	Pressure Range		Remark	Code	Pressure Range	Remark
	G1	0kPa~100kPa		G	A1	0kPa~100kPa	A
	G2	0kPa~350kPa		G	A2	0kPa~350kPa	A
	G3	0kPa~700kPa		G	A3	0kPa~700kPa	A
	G4	0MPa~1.6MPa		G	A4	0MPa~1.6MPa	A
	G5	0MPa~3.5MPa		G	A5	0MPa~3.5MPa	A
	G6	0MPa~7MPa		G	A6	0MPa~7MPa	A
	G7	0MPa~10MPa		G
	G8	0MPa~20MPa		G
	G9	0MPa~40MPa		G
	G10	0MPa~60MPa		G
		Code	Output
		2KV	2×PNP+0V~5/10V DC
		2KA	2×PNP+0/4mA~20mA DC
			Code	Thread interface
			C1	M20×1.5 male, end face seal
			C2	G1/4 male
			C3	G1/2 male
			C5	M20×1.5 male, waterline seal
			C6	1/4NPT male
				Code	Others
				R5	5-pin M12×1 plug
				R8	8-pin M12×1 plug for Modbus communication

PSWI5581	G4	2KA	C2	R5	the whole spec.

application

Because of its good media compatibility, PSWI5581 intelligent pressure switch can be widely used in various industrial control sites such as pumps, hydraulic and pneumatic equipment, etc.

Last article：PSI5801 Pressure Switch Next article：没有了
