LSW5881SR Level Switch

time：2021-01-21 browse：second

< >

Model：

overview：

LSW5881SR liquid level switch is an intelligent liquid level controller integrating liquid level measurement, display and control. Output signal of the sensor is amplified, noise-reduced and adjusted by a highly integrated microprocessor to achieve accurate measurement, display and control of the switch output. All stainless steel shell, protection grade: IP65 for body and IP68 for probe, the meter head can rotate freely at 320°. The circuit design of this product has overvoltage, overcurrent and reverse polarity protection; it is suitable for complex electromagnetic environment; and it supports 24V DC or 220V AC power supply. Analog output (4mA~20mA DC) + 2 -way PNP, 2-way PNP, 2-way NPN or 1 way relay can be selected; support manual reset and measurement unit switching; OLED screen displays real-time liquid level value and switch status. It is widely used in water conservancy and hydropower, petroleum, chemical industry, metallurgy, transportation, electricity, machinery manufacturing and other industries.

main features
parameter
structure
selection
application

download

main features

● All stainless steel shell, IP65 protection (body); IP68 protection (probe)

● OLED screen, liquid level and switch status display

● Compact size, 320°free rotation

● Protection of overvoltage, overcurrent and reverse polarity

● Anti-electromagnetic design, suitable for complex electromagnetic environment

● Analog output (4mA~20mA DC) + 2-way PNP; 2-way PNP; 2-way NPN; 1 way Relay optional

● 24V DC, 220V AC power supply optional

● Factory reset function, manual reset

● Support m, cm, mm, inch unit switching

parameter

Power Supply	（220±44）V AC；24V DC
Overpressure	1.5 times FS
Range	0m~0.5m...200m
Accuracy	±0.25%FS、±0.5%FS
Display	OLED liquid crystal, pixel 128×32, white text on black background
Display refresh	1s、0.5s、0.2s（default）
Repeatability	≤±0.1%FS
Temperature drift	≤±0.04%FS/℃
Switch setting	0.5%FS~99.5%FS
Switch delay	0.0s~99.9s
Response time	＜30ms
Weight	~600g, including 2m gas leading cable
Protection	IP65 (switch body), IP68 (probe)
Transistor	Transistor output: 2-way PNP or 2-way NPN
Transistor	Switching current≤0.4A
Analog output	4mA~20mA DC；Load≤560Ω
Relay	Relay output: 1 way(SPDT)
	Switching voltage≤250V AC/30V DC
	Switching current≤3A
	Life: 10 million times/min.load, 100,000 times/max.load
Media temp.	-20℃~80℃/-4℉~176℉
Storage temp.	-40℃~80℃/-40℉~176℉
Operation temp.	-20℃~80℃/-4℉~176℉
Media compatible	Liquid or gas compatible with stainless steel and fluororubber
Electromagnetic compatibility	GB/T 17626.2/3-2006，GB/T 17626.4-2008
Shock	≤20g/10Hz...500Hz (GB/T 2423.10-2008)
Impact	≤50g/11ms (GB/T 2423.5-1995)

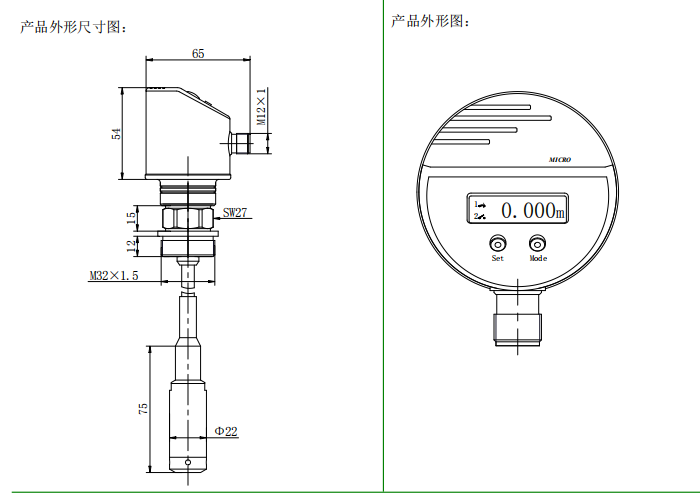

structure

Unit: mm

selection

Order Guide
LSW5881SR	Level Switch
	Range	Liquid Level Measurement Range: 0m~0.5m...200m
	[0~X]m	X: Actual measurement range
		Code	Power Supply
		AC	220V AC
		DC	24V DC
			Code	Output Signal
			P	2×PNP
			N	2×NPN
			J	1×Relay
			E	Analog output（4mA~20mA DC）+2×PNP
				Code	Threaded interface
				C17	R3/4 male
				F3	DN10 Flange

LSW5881SR	[0~2]m	DC	P	C17	the whole spec.

application

LSW5881SR liquid level switch is widely used in water conservancy and hydropower, petroleum, chemical industry, metallurgy, transportation, electricity, machinery manufacturing and other industries.
