LT10SR-2893 Liquid Level Transmitter

time：2021-01-08 browse：second

< >

Model：

overview：

LT10SR-2893 is a fully sealed submersible liquid level transmitter, it adopts high-stability and reliability OEM pressure sensor and high-precision circuit board. Integrated construction and standardized signal output provide convenience for application on site and automatic control. Dedicated cable is connected to the transmitter housing, the transmitter can be immerged into the media that is compatible with its construction material for a long time.

LT10SR-2893 liquid level transmitter has compact size, light weight and good stability; it can be used for water or liquid level measurement and control of medicine, metallurgy, electricity, mine, city water supply and drainage and hydrology, etc.

main features
parameter
structure
selection
application

download

main features

● Integrated structure, unnecessary to do external adjustment

● IP68 Protection for sensor housing, IP65 for junction box

● Cost-effective, high reliability and stability

parameter

Range（FS）	2，5，10，20，50mH₂O
Overpressure	1.5 times FS
Accuracy	±0.5%FS
Long-term Stability	Range＞10mH₂O；≤±0.2%FS/year
	Range≤10mH₂O；≤20mmH₂O
Temp.error	Range	Zero	FS
	>10mH₂O	≤±0.02%FS/℃	≤±0.05%FS/℃
	≤10mH₂O	≤±0.05%FS/℃	≤±0.05%FS/℃
Operation temp.	-10℃~80℃
Storage temp.	-20℃~100℃
Power Supply	11~28V DC
Output Signal	4mA~20mA DC (2-wire)；0.5V~4.5V DC (3-wire)
Load	<(U-11)/0.02Ω (2-wire)；≥10k (3-wire)
Sensor Housing	Stainless steel 316L
Housing	PA
O-ring	Fluororubber
Diaphragm	Stainless steel 316L
Cable	φ7.5mm PU cable

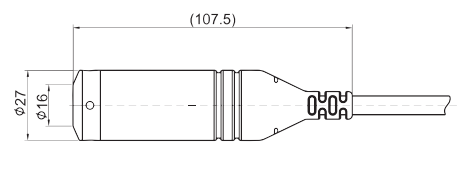

structure

Unit: mm

selection

Order Guide
LT10SR-2893	Liquid Level Transmitter
	Range	Measurement range: 2m...50mH₂O
	[0m~XmH₂O]L	X: Actual measurement range; L: Cable length; L-X=(1~2)m suggested
		Code	Output Signal
		E	4mA~20mA DC
		K	0.5V~4.5V DC
			Code	Additional Function
			Yc	MS200 water-proof junction box (default)
			Yd	PD140 lightening-proof protection device

LT10SR-2893	[0m~3mH₂O]5	K	Yc	the whole spec.

application
