LT10SR-2700 Intelligent Liquid Level Transmitter

time：2021-01-07 browse：second

< >

Model：

overview：

LT10SR-2700 intelligent liquid level transmitter that has full stainless steel structure is a fully sealed submersible liquid level measuring instrument, it adopts high-stability and high-reliability OEM pressure sensor and high-precision processing circuit. Digital temperature compensation and nonlinearity correction technology are used to ensure the reliability and accuracy of the measured value. The water-proof cable is connected to the transmitter housing, the transmitter can be immerged into the liquid for a long time. Integrated construction and standardized output signal provide convenience for application on site and automatic control.

LT10SR-2700 intelligent liquid level transmitter works in a two-wire system, the product has compact size, light weight and good stability; it can be used for water or liquid level measurement and control of petroleum, chemical industry, electricity, city water supply and drainage and hydrology, etc.

main features
parameter
structure
selection
application

download

main features

● 4mA~20mA DC output (2-wire);

● Digital temperature compensation and nonlinearity correction;

● RS485 communication interface(Custom protocol) or HART communication protocol(optional);

● Networking application available;

● Full stainless steel construction, compact size, light weight;

● Special requirement available;

● RoHS Certificate;

● Intrinsic safety ex-proof version conforming to GB3836.4 standard; Ex-proof Certificate is issued; Ex-mark is Exia II BT6 Ga

● Marine product conforms to the requirements of CCS 'Classification Rules of Steel sea-going Vessel' (2006), it has obtained the type approval.

parameter

Basic Range (mH₂O)	3.5	7	10	20	35	70	100	200
Overpressure (mH₂O)	5	10	15	30	50	100	150	300
Comprehensive accuracy①②	±0.075%FS(min.)；±0.1%FS(typ.)；±0.25%FS(max.)
Power Supply	10V~28V DC (RS485)；12V~30V DC (HART)；10V～12V DC (Exia)
Output Signal	4mA~20mA DC；RS485 interface or HART communication protocol
Compensation temp.③	-10℃~70℃
Operation temp.	-10℃~70℃，-20℃~60℃(Intrinsic safety)
Storage temp.	-20℃~85℃
Long-term Stability	±0.2%FS/year
Load	4mA~20mA DC output,（U-12V）/0.02A（Ω）
	RS485 bus could connect with 99 transmitters
Insulation	100MΩ, 50V
Vibration	20g，20Hz~5000Hz
Impact	20g，11ms
Protection	IP68(Transmitter part); IP65(junction box part)
Media compatibility	Diaphragm: Stainless Steel 316L
	Housing: Stainless Steel 1Cr18Ni9Ti
	O-ring: Fluororubber
Weight	~250g

①Comprehensive accuracy: including non-linearity, hysteresis, repeatability and temperature error;

②For 3.5mH₂O and 7mH₂O liquid level transmitter, after range shrinking, accuracy (typ.) is ±0.5%FS;

③For special requirement about temperature range, please contact with our company.

structure

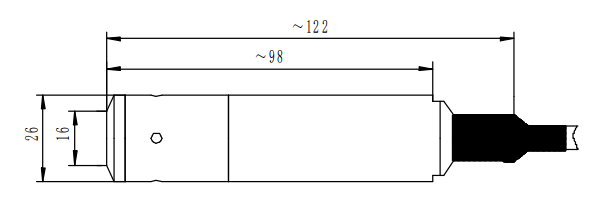

Unit: mm

selection

Order Guide
LT10SR-2700	Intelligent Liquid Level Transmitter
	Range	Measurement Range: 0m~3.5m...200mH₂O
	[0m~Xm H₂O]L	X: Actual measurement range; L: Cable length; L-X=(1~2)m suggested
		Code	Output Signal
		E	4mA~20mA DC
		R4	RS485 communication interface, Custom protocol
		R8	RS485 interface, MODBUS communication protocol
		H	HART communication protocol
			Code	Construction material
				Diaphragm	Port	Housing
			22	SS 316L	SS	SS
			24	SS 316L	SS 316L	SS 316L
				Code	Additional Function
				C1	M20×1.5 male, face type seal
				C5	M20×1.5 male, waterline seal
				Yb	Aluminum connection box without display
				Yc	MS200 water-proof junction box (default)
				Yd	PD140 lightening-proof protection device
				Ye	Junction box(with display or without display)
				F1	Fixed flange
				i	Intrinsic safety type ExiaⅡBT6 Ga
				T	Marine product

LT10SR-2700	[0m~10m H₂O]12	ER4	22	Yc	the whole spec.

application

LT10SR-2700 intelligent liquid level transmitter can be used for water or liquid level measurement and control of petroleum, chemical industry, electricity, city water supply and drainage and hydrology, etc.
