LT10SR-214 Liquid Level Transmitter

time：2021-01-07 browse：second

< >

Model：

overview：

LT10SR-214 is a minor diameter & fully sealed submersible liquid level transmitter, it is made by inserting high-stability and reliability OEM pressure sensor and high-precision circuit board into the stainless steel housing. Integrated structure and standardized signal output provide convenience for application on site and automatic control. The dedicated cable is connected to the transmitter housing, the transmitter can be immerged into the media that is compatible with its construction material for a long time.

LT10SR-214 liquid level transmitter has compact size, light weight and good stability; it is suitable for water or liquid level measurement and control in the fields of medicine, metallurgy, electricity, mine, city water supply and drainage and hydrology, etc.

main features
parameter
structure
selection
application

download

main features

• Integrated structure, unnecessary to do external adjustment;

• IP68 Protection (sensor housing), and IP65 for junction box housing;

• Cost-effective, high reliability and stability;

• Φ17mm outer diameter.

parameter

Range	10，20，50，100，200mH₂O
Overpressure	1.5 times FS
Accuracy	±0.5%FS
Long-term Stability	Range＞20mH₂O，±0.2%FS/year
	Range≤20mH2O, 20mmH₂O
Temp.error	Zero	FS
	±0.02%FS/℃	±0.05%FS/℃
Operation temp.	-10℃~70℃
Storage Temp.	-20℃~85℃
Power Supply	11V~28V DC
Output Signal	4mA~20mA DC (2-wire)
Load	＜(U-11)/0.02 (Ω)
Housing	Stainless Steel 304
O-ring	Fluororubber
Rubber sleeve	Neoprene
Cable	Φ7.5mm PE cable
Diaphragm	SS 316L
Cap	Black nylon

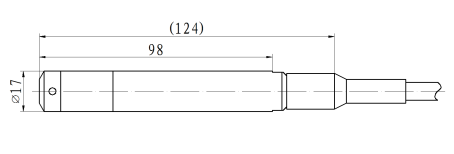

structure

Unit: mm

selection

Order Guide
LT10SR-214	Liquid Level Transmitter
	Range	Measurement Range: 0m~10m...200mH₂O
	[0m~Xm H₂O]L	X: Actual measurement range; L: Cable length; L-X=(1~2)m suggested
		Code	Output Signal
		E	4mA~20mA DC
			Code	Construction material
				Diaphragm	Port	Housing
			22	SS 316L	SS	SS
			24	SS 316L	SS 316L	SS 316L
			25	Tantalum	SS	SS
				Code	Additional Function
				M1	0%~100% linear indicator
				Yb	Aluminum connection box without display
				Yc	MS200 water-proof connection box (default)
				Yd	PD140 lightening-proof protection device
				Ye	Connection box(with display or without display)
				F1	Fixed flange

LT10SR-214	[0m~10m H₂O]12	E	22	Yc	the whole spec.
