PDT10SR-492 Differential Pressure Transmitter

time：2020-12-31 browse：second

< >

Model：

overview：

PDT10SR-492 is a micro differential pressure transmitter in two-wire system, it adopts advanced sensor and high-performance amplifier circuit to ensure reliable performance and convenient installation. This product is suitable for lower differential pressure measurement of non-conductive, non-corrosive liquids or gases, it's widely applied in Boiler, Wine industry, Engine, Electric power and so on.

main features
parameter
structure
selection
application

download

main features

● Micro differential pressure measurement;

● Compact size, convenient installation;

● Suitable for non-conductive, non-corrosive liquids or gases.

parameter

Pressure Range	0kPa~1kPa	0kPa~2.5kPa	0kPa~7kPa
Overpressure	3kPa	7.5kPa	21kPa
Limited Pressure	5kPa	12.5kPa	35kPa
Static Pressure	300kPa	300kPa	300kPa
Accuracy	≤±1%FS
Long-term Stability	≤±10Pa/year	≤±25Pa/year	≤±70Pa/year
Zero temp.error	≤±0.05kPa	≤±0.125kPa	≤±0.4kPa (0℃~70℃, @25℃ )
FS temp.error	≤±0.02kPa	≤±0.05kPa	≤±0.14kPa (0℃~70℃, @25℃ )
Media temp.	-10℃~85℃
Storage temp.	-40℃~125℃
Compensation temp.	0℃~70℃
Relative Humidity	0~80%
Power Supply	15V~30V DC
Output Signal	4mA~20mA DC
Connection	Φ8mm pagoda connector
Pressure Port	Stainless steel 1Cr18Ni9Ti
Electrical Housing	Aluminum-alloy

structure

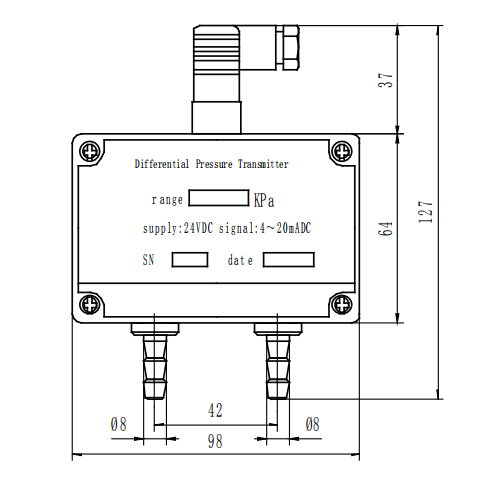

Unit: mm

selection

Order Guide
PDT10SR-492	Differential Pressure Transmitter
	Code	Pressure Range: 0kPa~1kPa...7kPa
	[0~X]kPa	X=Actual measurement range
		Code	Output Signal
		E	4mA~20mA DC

PDT10SR-492	[0~2.5]kPa	E	the whole spec.

application

PDT10SR-492 differential pressure transmitter is suitable for lower differential pressure measurement of non-conductive, non-corrosive liquids or gases, it's widely applied in Boiler, Wine industry, Engine, Electric power and so on.
