PTC/PDT10SR-484 Pressure/Differential Pressure Transmitting Controller

time：2020-12-30 browse：second

< >

Model：

overview：

PTC/PDT10SR-484 pressure/differential pressure transmitting controller is an integrated multi-functional transmitter with analog circuit, it can measure and display liquid pressure or differential pressure on site as well as output standard signal, the transmitter can provide max.5 relay outputs. During pressure control, in order to prevent misoperation of the relay jitter at the critical point, special treatment is carried out in the circuit so that improves the reliability of the product. It is suitable for flow pressure or differential pressure measurement, display and control in the fields of power station, water supply and drainage, petroleum and chemi-industry, etc.

main features
parameter
structure
selection
application

download

main features

• Φ150mm standard pressure gauge outline;

• 3½-digit LED digital display;

• Max. 5 relay outputs, set and display freely; stable operation;

• Wider power supply range, multiple standard analog signal output;

• Stainless steel material contacting with media, aluminum-alloy electronic housing;

• SS 316L isolation diaphragm, flush diaphragm (only for pressure type) and tantalum diaphragm (only for pressure type) optional;

• Strict aging test, stable and reliable performance;

parameter

PTC/PDT10SR-484	Pressure Range: -0.1MPa...0MPa~0.01MPa...100MPa
	Overpressure: 1.5 times FS or 110MPa（min.value is valid）
PTC/PDT10SR-484	Differential pressure range	Overpressure
		+	-
	0~35kPa	70kPa	35kPa
	0~70kPa	140kPa	70kPa
	0~100kPa	200kPa	100kPa
	0~200kPa	400kPa	200kPa
	0~350kPa	700kPa	350kPa
	0~700kPa	1400kPa	700kPa
	0~1MPa	2MPa	1MPa
	0~2MPa	4MPa	1MPa
	0~3.5MPa	7MPa	1MPa
	Static Pressure	≤20MPa
Accuracy	±0.25%FS(typ.); ±0.5%FS(max.)
Display accuracy	±1 digit
Relay control accuracy	≤±1%FS
Power supply effect	≤±0.1%FS
Long-term stability	≤±0.5%FS/year
Environment temp.	-10℃~60℃
Media temp.	-10℃~80℃
Storage temp.	-40℃~100℃
Relative humility	0~80%
Frequency	0Hz~300Hz
Acceleration	≤3×9.81ms-2
Impact	≤10×9.81ms-2
Output Signal	0/4mA~10/20mA DC; 0/1V~5/10V DC
Transmitting	4-wire; 4-wire
Power voltage	220V AC, 220V DC or 24V DC
Max. consumption	≤4W
Relay load	240V/3A(AC), 30V/5A(DC)
Relay life	>100000 times

structure

Unit: mm

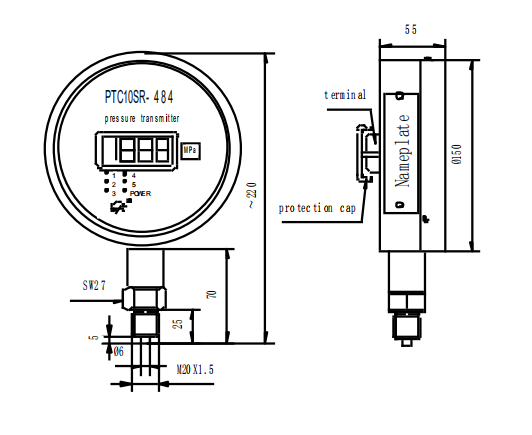

PTC10SR-484

PDT10SR-484

selection

Order Guide
PTC10SR-484	Pressure Transmitting Controller
PDT10SR-484	Differential Pressure Transmitting Controller
	Code	Pressure range: kPa or MPa
	[0~X]kPa or MPa	-0.1MPa...0MPa~0.01MPa...100MPa X: PTC10SR-484 actual measurement range
		0kPa~35kPa...3.5MPa X: PDT10SR-484 actual measurement range
		Code	Output Signal
		E	4mA~20mA DC
		F	1V~5V DC
		J	0V~5V DC
		Q	0mA~10mA DC
		U	0mA~20mA DC
		V	0V~10V DC
			Code	Construction material
				Diaphragm		Pressure port	Housing
			22	SS 316L		SS	SS
			24	SS 316L		SS 316L	SS 316L
			25	Tantalum		SS	SS
			35	Tantalum		Hastelloy C	SS
				Code	Additional Function
				PC1	Flush diaphragm, M20×1.5 male
				PC3	Flush diaphragm, G1/2 male
				C1	M20×1.5 male, face type seal
				C3	G1/2 male（for type P）
				C4	G1/4 female
				C5	M20×1.5 male, waterline seal
				G	Gauge
				S	Sealed gauge
				A	Absolute
				Jn	Reply tips, n=1~5
				V1	Power supply: 24V DC
				V2	Power supply: 220V AC

PTC10SR-484	[0~100]kPa	E	22	C1GJ3V2	the whole spec.

application

PTC/PDT10SR-484 pressure/differential pressure transmitting controller is suitable for flow pressure and differential pressure measurement, display and control in the fields of power station, water supply and drainage, petroleum and chemi-industry, etc.
