PDT10SR-230 Piezoresistive Differential Pressure Transmitter

time：2020-12-30 browse：second

< >

Model：

overview：

The sensitive element of PDT10SR-230 differential pressure transmitter is a solid piezoresistive chip, silicon oil is filled between chip and two corrugated diaphragms. When the measured differential pressure is added on two corrugated diaphragms, the pressure could be transferred to sensitive chip through silicon oil, sensitive chip connects with amplifier circuit through wires. This product uses the piezoresistive effect of semiconductor silicon material to realize the conversion between differential pressure and electrical signals. The output signal from Weston Bridge on the sensitive chip has a good linear relationship with differential pressure, so the differential pressure could be measured precisely. The product is suitable for differential pressure measurement of various gases and liquids in pipelines such as Petroleum, Chemical, Power station and Hydrology, etc.

main features
parameter
structure
selection
application

download

main features

• Full stainless steel construction, compact size, install easily;

• Welding and full-sealed construction; housing protection IP65;

• Piezoresistive differential pressure sensor, SS 316L isolation diaphragm;

• Temperature compensation and aging test, stable performance;

• Zero and FS adjustable externally;

• Ex-proof version conforms to GB3836.4 standard; ex-proof certificate is approved;

• Marine product conforms to CCS 'Classification Rules of Steel Sea-going Vessel' (2006); marine certificate is approved;

• CE and RoHS certificates.

parameter

Range Code	0A	02	03	07	08	09	10	12	13
Unit	kPa						MPa
Range	0~35	0~70	0~100	0~200	0~350	0~700	0~1	0~2	0~3.5
+Overpressure	70	150	200	400	700	1400	2.0	4.0	7.0
-Overpressure	35	70	100	200	350	700	1.0	1.0	1.0
Static Pressure	≤20MPa
		min.	typ.	max.	Unit
Accuracy			0.5		±%FS
Zero temp.error	≤200kPa		0.75	1.25	±%FS，@25℃
	>200kPa		0.5	0.75
FS temp.error	≤200kPa		0.75	1.25
	>200kPa		0.5	0.75
Long-term Stability	≤200kPa	0.5			±%FS/year
	>200kPa	0.2
Static Pressure Effect		0.05			±%FS, per 100kPa
Compensation temp.		0~50			℃
Operation temp.		-30~80;-10~70(Cable)
Storage temp.		-40~120;-20~85(Cable)
Power Supply		15V~28V DC(2-wire); 15V~28V DC(3-wire)
Output Signal		4mA~20mA DC(2-wire); 0V/1V~5V DC, 0mA~10mA/20mA DC(3-wire)
Electrical Connection		Plug or Φ7.2mm 7-pin Cable
Response Time(10%~90%)		≤1ms
Insulation		100MΩ, 500V DC
Housing		SS 1Cr18Ni9Ti
O-ring		Fluororubber
Diaphragm		SS 316L
Filled liquid		Silicon oil
Pressure Connection		G1/4 female
Shock		≤±1% at 3gRMS, 30Hz~2000Hz
Impact		≤1% at 100g, 10ms
Media		liquid or gas which is compatible with construction material

structure

Unit: mm

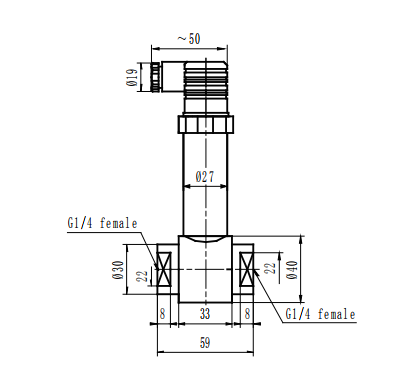

(Plug connection)

(Cable connection)

selection

Order Guide
PDT10SR-230	Piezoresistive Differential Pressure Transmitter
	Code	Pressure Range
	[0~X]kPa or MPa	Range code	Pressure Range(kPa)	Overpressure		Range code	Pressure Range(MPa)	Overpressure
				+	-			+	-
		0A	0~35	70	35	09	0~0.7	1.4	0.7
		02	0~70	150	70	10	0~1.0	2.0	1.0
		03	0~100	200	100	12	0~2.0	4.0	1.0
		07	0~200	400	200	13	0~3.5	7.0	1.0
		08	0~350	700	350
		Code	Output Signal
		E	4mA~20mA DC
		F	1V~5V DC
		J	0V~5V DC
		Q	0mA~10mA DC
		U	0mA~20mA DC
		V	0V~10V DC
			Code	Construction Material
				Diaphragm		Pressure port		Housing
			22	SS 316L		SS		SS
			24	SS 316L		SS 316L		SS 316L
				Code	Additional Function
				C4	G1/4 female
				B1	Plug connection
				B2	Cable connection; length: 1.5m
				M3	3½ LCD digital indicator (only 4~20mA DC)
				M6	4 LED digital indicator (only 4~20mA DC)
				i	Intrinsic safety type Exia II CT6 Ga
				T	Marine product

PDT10SR-230	[0~100]kPa	E	22	C4B2	the whole spec.

application

PDT10SR-230 differential pressure transmitter is suitable for differential pressure measurement of various gases and liquids in pipelines such as Petroleum, Chemical, Power station and Hydrology, etc.
