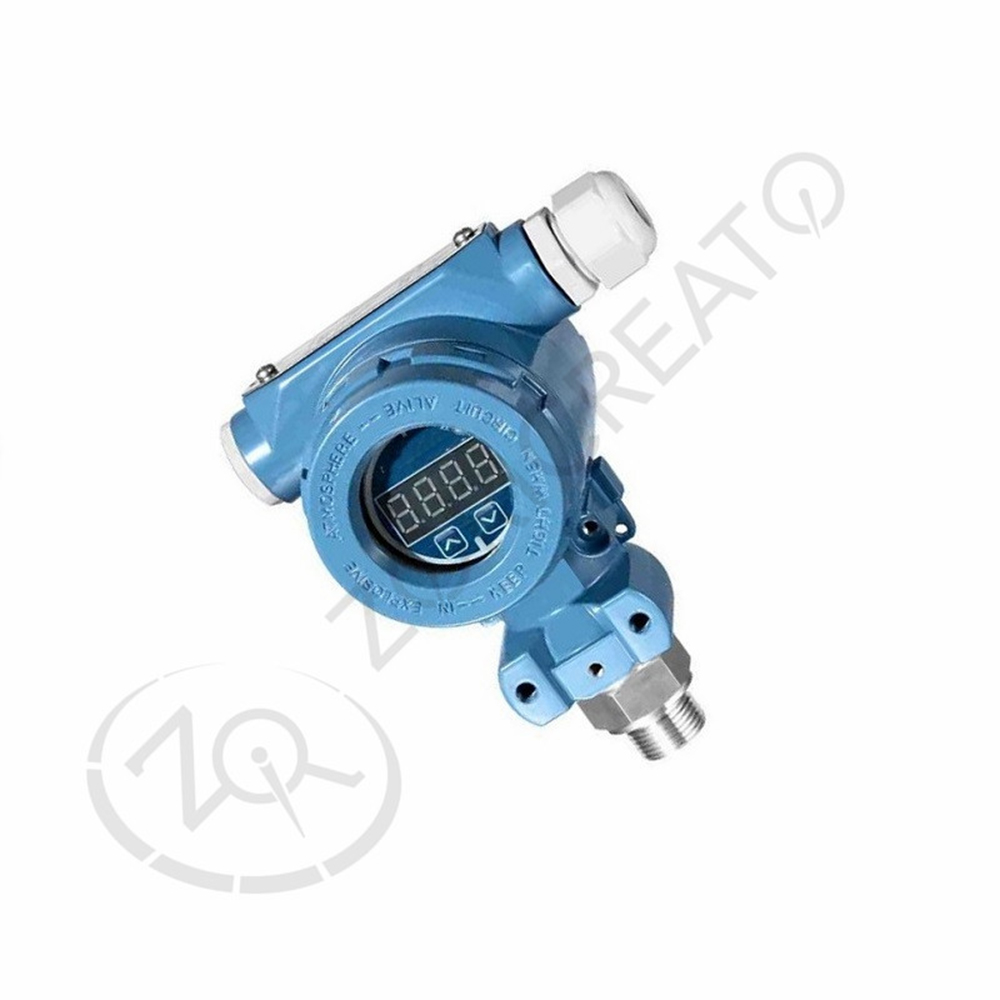

PT20SR-3483 Piezoresistive Pressure Transmitter

time：2020-12-22 browse：second

< >

Model：

overview：

PT20SR-3483 Piezoresistive Pressure Transmitter adopts OEM piezoresistive sensor as signal measuring element, which is through automatic test and laser trimming to compensate zero and sensitivity in wider temperature range. Sensor signal is transformed into standard output signal by the amplifier circuit. Through long-term aging and stability test, the whole product's performance is stable and reliable. The product is suitable for harsh environment where needs zero shift and range adjustment. It is widely used for process control and pressure measurement of Petroleum, Chemi-industry, Metallurgy, Power station, Textile industry, Building material, Food, Medicine, Hydrology and Environment control, etc.

main features
parameter
structure
selection
application

download

main features

• Aluminum-alloy electronic housing; IP65 protection;

• Protection of reversed polarity; Protection of instantaneous overcurrent, overvoltage and anti-interference;

• Optional signal output;

• 0~100% linear indicator, LCD and LED display are optional;

• Stainless steel material contacting with the media; flush diaphragm and tantalum diaphragm optional;

• Intrinsic safety Explosion-proof version conforms to the standard of GB3836.1 and GB3836.4; Explosion-proof Certificate is issued; The explosion-proof mark is ExiaⅡCT6.

• Exd product meets the requirements of GB3836.2 standard; Exd Certificate is issued; The explosion-proof mark is ExdⅡCT6 Gb.

• Ship-use product conforms to CCS "Classification Rules of Steel Sea-going Vessel"（2015）; marine certificate is approved.

parameter

Code	0A	02	03	07	08	09	10	12	13	14	15	17	18	19	20
Unit	kPa						MPa
Range	0-10 ~ 0-35	0-20 ~ 0-70	0-30 ~ 0-100	0-60 ~ 0-200	0-100 ~ 0-350	0-200 ~ 0-700	0-0.3 ~ 0-1.0	0-0.6 ~ 0-2.0	0-1.0 ~ 0-3.5	0-2.0 ~ 0-7.0	0-3.0 ~ 0-10	0-6.0 ~ 0-20	0-10 ~ 0-35	0-20 ~ 0-70	0-30 ~ 0-100
Upper limit	35	70	100	200	350	700	1.0	2.0	3.5	7.0	10	20	35	70	100
Over-pressure	100	100	150	300	500	1000	1.5	3.0	5.0	10	15	30	50	100	110
Basic error		Code		Min.		Typ.		Max.		Unit
Non-linearity		0A~03		/		0.25		0.5		±%FS
		07~20		0.1		0.25		0.5		±%FS
Hysteresis		0A~03		/		0.15		0.25		±%FS
		07~20		0.05		0.1		0.15		±%FS
Repeatability		0A~03		/		0.25		0.5		±%FS
		07~20		/		0.15		0.25		±%FS
temp.effect		0A~03		0.5		1		2		±%FS, reference 25℃
		07~20		0.3		0.5		1		±%FS, reference 25℃
Stability			±0.3%FS/year
Media temp.			-30℃~80℃
Operation temp.			Normal Version: -30℃~80℃
			Intrinsic Safe Version: -10℃~60℃(only for 2-wire, 4~20mA)
			Exd Version: -20℃~60℃
			LCD Digital Indicator: -20℃~60℃
			LED Digital Indicator: -30℃~70℃
Power Supply			11~28V DC						15~28V DC
Output Signal			4mA~20mA DC						0/1V~5/10V DC
Transmitting			2-wire						3-wire
Load			≤（U-11）/0.02Ω						>5kΩ
Pressure Port			Stainless Steel 1Cr18Ni9Ti
Diaphragm			Stainless Steel 316L
Sealing			Viton O-ring or Full-welded
Electric housing			Aluminum-alloy
Protection			IP65

structure

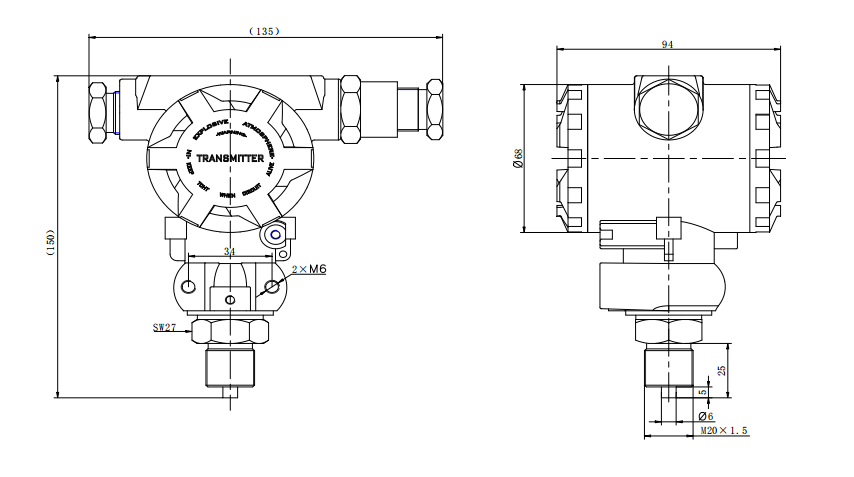

Normal/Intrinsic safety type (Unit: mm)

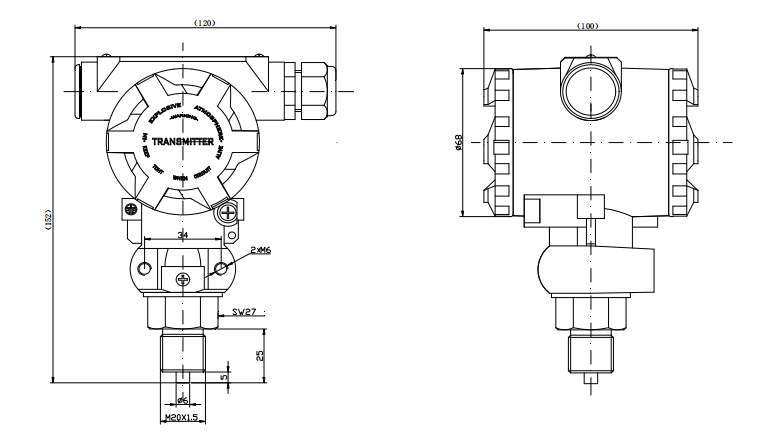

Exd type (Unit: mm)

selection

Order Guide
PT20SR-3483	Piezoresistive Pressure Transmitter
	Range	-100kPa…0kPa~10kPa…100MPa
	[0~X]kPa or MPa	X: Actual measurement range
		Code	Output Signal
		E	4mA~20mA DC
		F	1V~5V DC
		J	0V~5V DC
		V	0V~10V DC
			Code	Construction Material
				Diaphragm	Pressure Port	Housing	Electric Housing
			22	SS 316L	SS	SS	Aluminum-alloy
			24	SS 316L	SS 316L	SS 316L	Aluminum-alloy
			25	Tantalum	SS	SS	Aluminum-alloy
			35	Tantalum	Hastelloy C	SS	Aluminum-alloy
				Code	Additional Function
				M1	0~100% linear indicator		only for 4~20mA DC output
				M3	3½LED digital indicator(only for explosion-proof type)
				M6	4 LED digital indicator
				M7	4 LCD digital indicator
				PC1	Flush diaphragm, M20×1.5 male
				PC3	Flush diaphragm, G1/2 male
				i	Intrinsic safety type Exia II CT6 Ga
				d	Exd type Exd II CT6 Gb
				T	Ship-use
				C1	M20×1.5 male, face type seal
				C3	G1/2 male
				C5	M20×1.5 male, waterline seal
				G	Gauge
				S	Sealed gauge
				A	Absolute

PT20SR-3483	[0~100]kPa	E	22	C5G	the whole spec.

application

PT20SR-3483 Piezoresistive Pressure Transmitter is widely used for process control and pressure measurement of Petroleum, Chemi-industry, Metallurgy, Power station, Textile industry, Building material, Food, Medicine, Hydrology and Environment control, etc.
