PS10SR-2380 Piezoresistive Pressure Transducer

time：2020-12-14 browse：second

< >

Model：

overview：

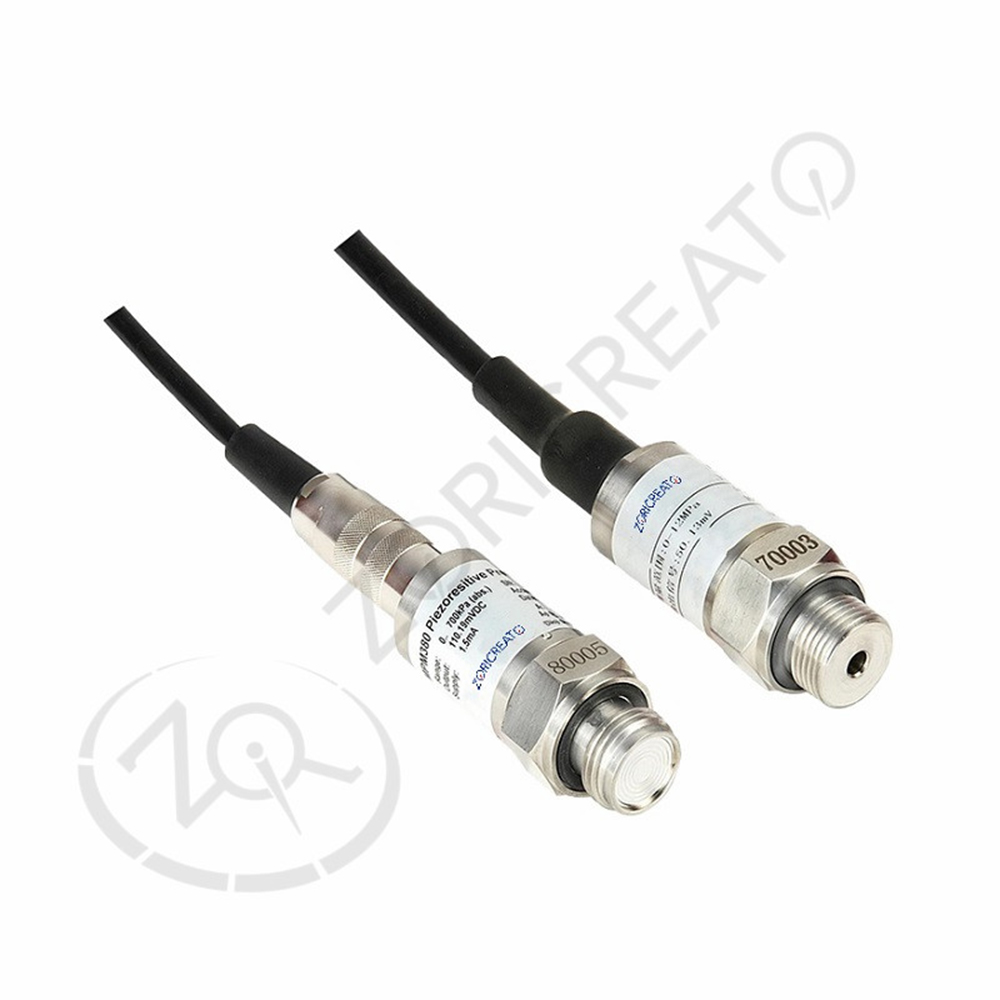

General PS10SR-2380 pressure transducer is produced by inserting an OEM piezoresistive pressure sensor into stainless steel housing. Due to stainless steel pressure port and housing, the product has good media compatibility, stable performance and high accuracy.The product that has M20×1.5 male pressure port,end face sealing gasket, it can be used for pressure measurement of dynamic or static gas and liquid media. Flush diaphragm PS10SR-2380 pressure transducer has G1/2 male pressure port and end face seal fluororubber sealing gasket, it can be widely applied in Food, Medicine, Sanitation or other fields where is easy to be dirty.

main features
parameter
structure
selection
application

download

main features

•Full stainless steel construction;

•Thread connection optional;

•Constant current supply;

•Compensating zero and FS thermal error by laser trimming;

•Selecting solid piezoresistive pressure sensor, high reliability and stability;

•Cable connection or plug connection.

parameter

Pressure Range	-0.1MPa...0~0.02MPa...100MPa
Over-Pressure	1.5 times FS or 110MPa (min.value is valid）
Power Supply	1.5mA DC
Zero output	≤ ±2mV DC
FS Output	≥70mV DC(0~20kPa, ≥50mV DC)
Accuracy	±0.1%FS(min.) ±0.25%FS(typ.) ±0.5%FS(max.)
Long-term stability	±0.3%FS/year
Compensation temp.	0℃~50℃
Operation temp.	-30℃~80℃; -10℃~70℃(Cable)
Storage temp.	-40℃~120℃; -20℃~85℃(Cable)
Zero temp. coefficient	±0.02%FS/℃(typical) ±0.04%FS/℃(max.)
FS temp. coefficient	±0.02%FS/℃(typical) ±0.04%FS/℃(max.)
Housing	Stainless steel 1Cr18Ni9Ti
Diaphragm	Stainless steel 316L
O-ring	Fluororubber
Cable	Φ7.2mm PE
Response time(10%~90%)	≤1ms
Insulation	100MΩ, 100V DC
Protection	IP65

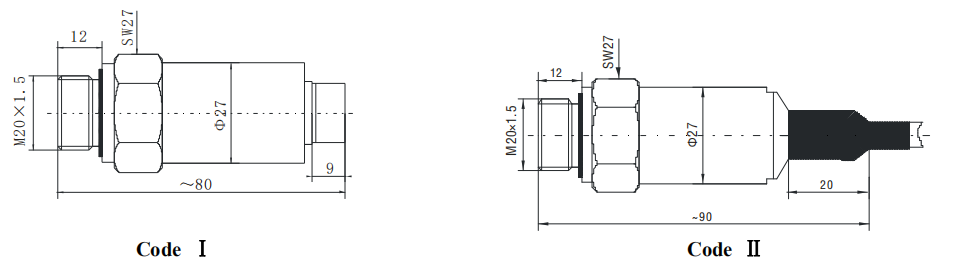

structure

selection

Order Guide
PS10SR-2380	Piezoresistive Pressure Transducer
	Code	Pressure Range	Remark	Code	Pressure Range		Remark
	0B	0~20kPa	G	12	0~2MPa		G、A
	0A	0~35kPa	G	13	0~3.5MPa		G、A、S
	02	0~70kPa	G、A	14	0~7MPa		S
	03	0~100kPa	G、A	15	0~10MPa		S
	07	0~200kPa	G、A	17	0~20MPa		S
	08	0~350kPa	G、A	18	0~35MPa		S
	09	0~700kPa	G、A	19	0~70MPa		S
	10	0~1000kPa	G、A	20	0~100MPa		S
		Code	Pressure Type
		G	Gauge
		A	Absolute
		S	Sealed Gauge
			Code	Electric connection
			I	Plug connection
			II	Cable connection
				Cable length (m)	1.5m cable is free of charge; the extra cable should be paid additionally.
					Code	Pressure Port
					PC1	Flush diaphragm,M20×1.5 male
					PC3	Flush diaphragm,G1/2 male
					C1	M20×1.5 male,end face sealing
					C5	M20×1.5 male,waterline sealing
						Code	Special measurement
						N	Gauge type can be used to measure negative pressure (-100KPa~0KPa)

PS10SR-2380	10	G	II	5	PC1	N	the whole spec.

application

PS10SR-2380 pressure transducer can be widely applied in Food, Medicine, Sanitation or other fields where is easy to be dirty.
